Remote Kit for Ledwell Hydratail Trailer

HydraTail Trailer Remote Transmitter and Receiver Kits include:

  • hand-held remote
  • charger

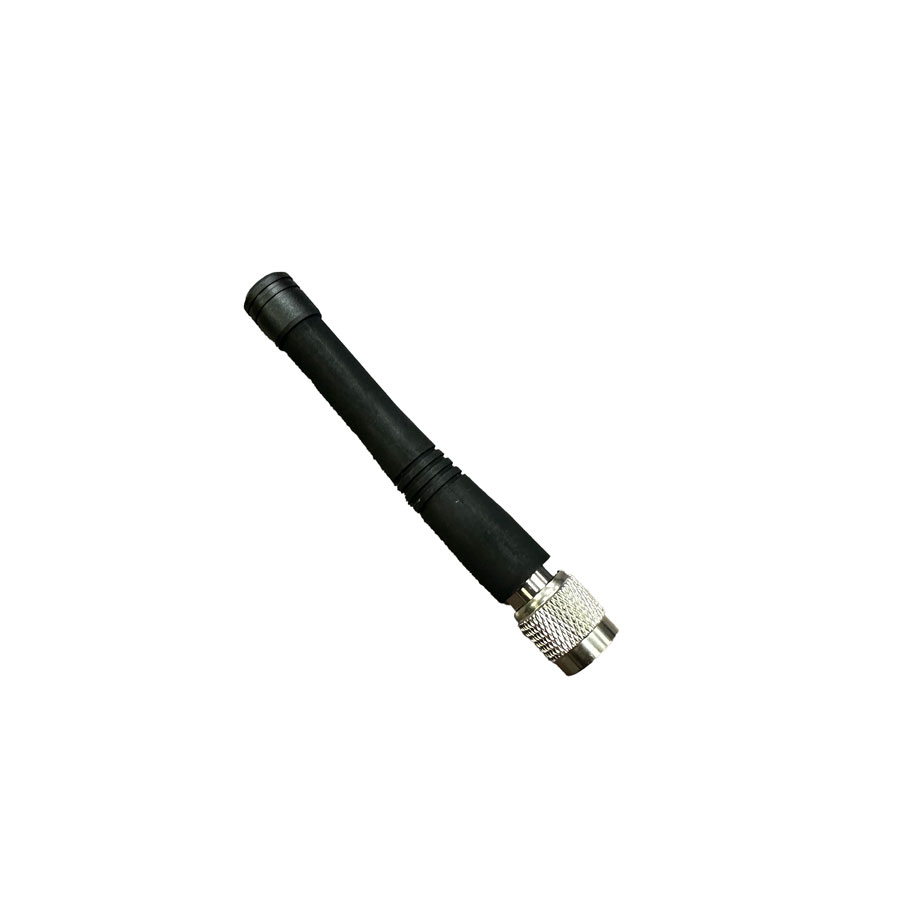

  • antenna
  • transmitter
  • cover for the remote handheld
  • charging cord

Each remote features in/out or on/off functions to operate the winch, tail, fold, lock, and mini deck on any Ledwell HydraTail Trailer.

Two ‘AA’ batteries provide 300 hours of continuous use. Transmitter and receiver units operate on 56-bit digital code, eliminating accidental operation. The system includes a model ASKW transmitter housed in a rugged aluminum enclosure. Features a low battery warning indicator.

The rechargeable transmitter delivers 30 hrs of continuous use between charges (charger included)

Please specify if the trailer is a HydraTilt or MaxTilt Trailer, as those feature an additional function.

Part Number: 91569

SKU: 91569 Categories: ,

Description

Step-by-Step Guide

How to Pair a Wireless Remote to a Receiver

LEARN MORE

Transmitter Specifications

Frequency of Operation 902-928MHz FHSS (433.92 ASK, 869.7 EUR option, and 2.4GHz DSS available)
Transmitter Power 100mW
Method of Transmission 56-bit DES encryption key
Antenna Internal ‘on card’ PCB mount (no visible antennas to damage)
Normal Range 500 feet (up to 1000ft available with an external antenna on the receiver)
FCC Approval # KQLAC4490-100 (non-licensed)
Construction Rugged weatherproof polymer enclosure
Temperature Specifications Minus 20 F to 185 F
Battery Life 30 hours continuous | audible low battery warning | flashing low battery indicator
Battery Type Rechargeable Lithium Ion included with 12/24VDC charger (2 ‘AA’ batteries for ASKW)
ROHS Lead-Free Compliant Yes

Receiver Specifications

Frequency of Operation 902-928MHz FHSS (433.92 ASK, 869.7 EUR option, and 2.4GHz DSS available)
Power Supply 12/24VDC (Optional 120VAC systems available)

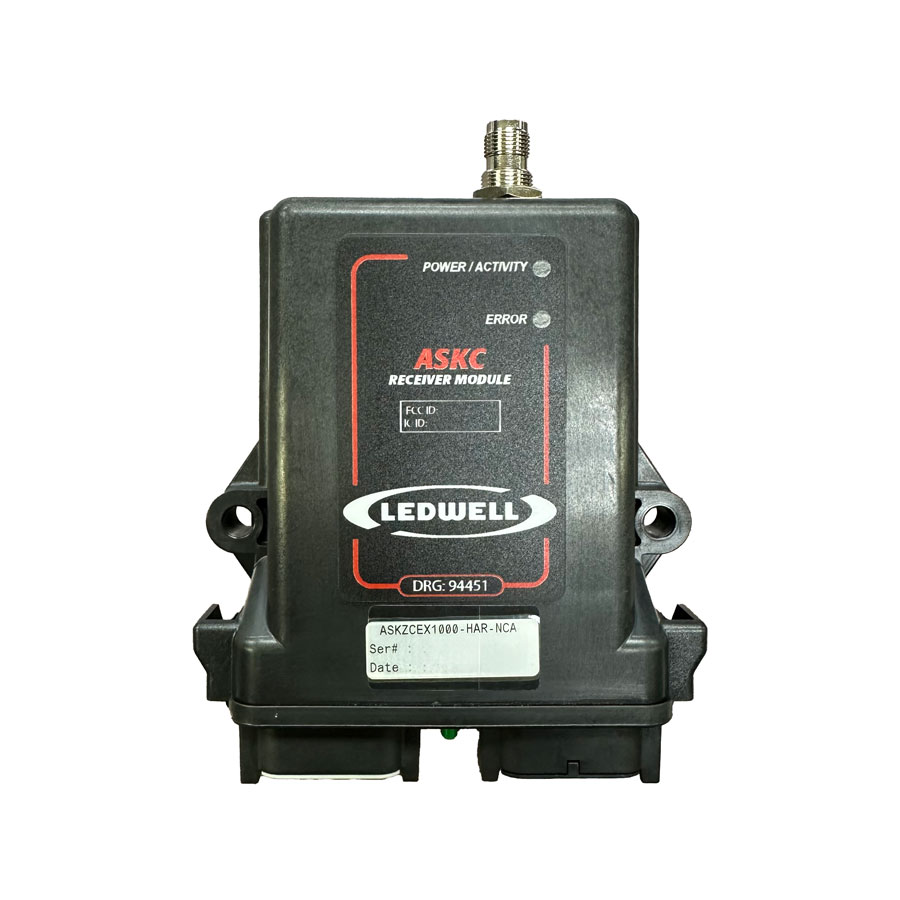

Current Load Up to 4 Amps @ 12VDC per channel or 8 Amps DC per system total
Construction Rugged weatherproof polycarbonate enclosure
Antenna Internally protected and encased (optional external antenna/coax available)
Wiring Connection Pre-wired harness to meet OEM requirements, quick connect fittings supplied
Programmable Modes Up to 12 programmable channels, including Latched, Momentary, Enable, and Interlock modes (custom OEM programming available)
CAN bus Communication Optional J1939 interface to OEM machine network
Total System Weight 2lbs
ROHS Lead-Free Compliant Yes
Ledwell Made Guarantee on all manufactured products

Ledwell Made Guarantee

We back every product with the Ledwell Made Guarantee.

When you become a Ledwell customer, one of the many services you can expect is express shipping. You don’t have to wait for parts. We manufacture more than 85% of our parts in-house and ship 99% within 24 hours of your request.

Contact Our Experts

HydraTail Trailer Remote Transmitter and Receiver FAQS

How do you pair a wireless remote to equipment?

Before beginning the procedure, make sure there are no other transmitters in the vicinity being operated, as this can cause issues with the dedication process.

Note that these receivers have the capability of storing two (2) unique ID codes, allowing the use of two (2) different transmitters.

1. Power up the receiver.

2. Locate the green ‘SETUP’ button on the bottom of the receiver as shown in the image to the right.

3. Press the ‘SETUP’ button 5 times quickly. The blue ‘POWER/ACTIVITY’ light will blink 5 times to confirm the correct entry.

4. Press the ‘SETUP’ button once. The ‘POWER/ACTIVITY’ light will blink once.

5. Press any button on the transmitter that will be used with this receiver for at least two (2) seconds. The ‘POWER/ ACTIVITY’ light on the receiver will blink approximately 6 times, indicating that the code has been learned. (Note that on handhelds with system ON/OFF buttons, the ON button must be used in this step).

6. If a second handheld requires dedication, go to step 7. If not, the dedication process is complete.

7. Press the ‘SETUP’ button 5 times quickly. The blue ‘POWER/ACTIVITY’ light will blink 5 times to confirm the correct entry.

8. Press the ‘SETUP’ button twice. The ‘POWER/ ACTIVITY’ light will blink twice.

9. Press any button on the transmitter that will be used with this receiver for at least two (2) seconds. The ‘POWER/ ACTIVITY’ light on the receiver will blink approximately 6 times, indicating that the code has been learned. The dedication process is now complete

Why isn’t the power light activating on my receiver?

Check your 7-way pigtail from the truck to the trailer for power. When the center pin is blue, you have power. If it is not, unplug the 7-way from the back of the truck and check the fixed plug on the truck for power. If there is no power, check for a blown fuse.

When I push buttons on my wireless remote, there are no lights.

There are two possibilities. Either your battery needs charged or you need a new battery. Try charging it. If there is no change, contact Ledwell.

My handheld remote and receiver seem to be pairing, but they are not operating my equipment.

Your air solenoids may be malfunctioning. Each solenoid has a button at its center. Use those to manually operate the air solenoids and ensure their responsiveness.
DO NOT ENGAGE THE PTO WHILE PERFORMING THIS TEST. AIR ONLY.
If there is still no operation, check the twist lock connector for corrosion on the pins.

There is no response when I push buttons on my Base remote, but I’ve just replaced the battery.

When you’re sure the battery is good and the remote has been charged, contact Ledwell. Your hand-held is most likely will need to be replaced.

Can I replace just the handheld portion of the wireless remote system?

Yes, we offer replacements for handheld wireless remotes. Contact our Parts Department to order.

Once you receive your new remote, you will need to pair it with the transmitter mounted on your equipment.
