Description
The non-CDL haul truck built for compact equipment transport, rental fleets, and geotechnical drill rigs, the Ledwell FreedomTail Truck helps keep equipment moving while expanding your available driver pool. Designed around a 26,000 GVWR chassis and equipped with a proven hydraulic tail system, the FreedomTail delivers the capability needed for lighter equipment hauling without relying on a CDL driver.

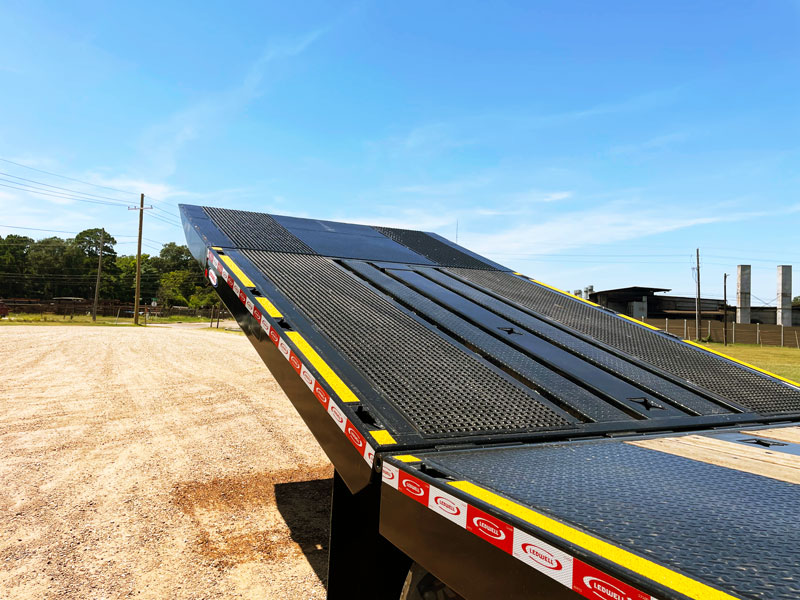

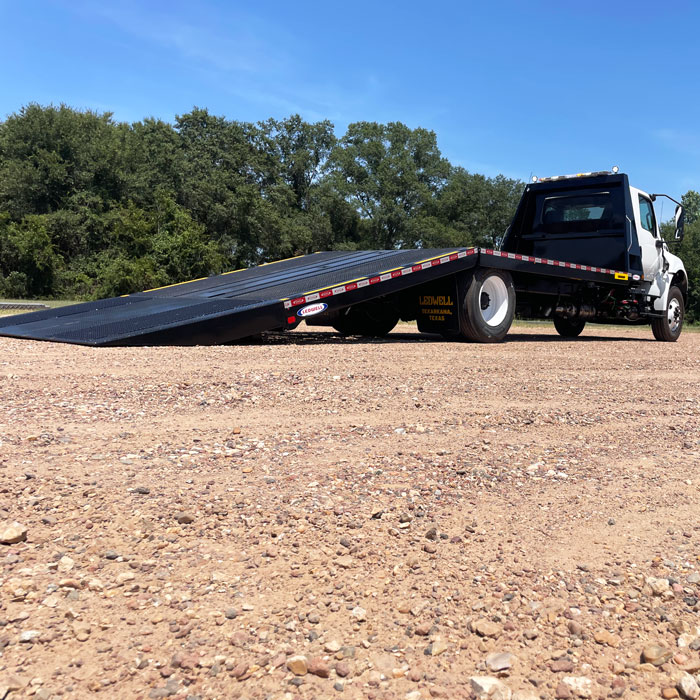

Purpose-built for fleets that need flexibility, the FreedomTail features a 24-foot steel deck, a 10,000-pound capacity, and a hydraulic tail that unfolds to create a 14-foot loading approach with a 15.5-degree loading angle. It is an ideal solution for service equipment, compact construction equipment, and other machinery that benefits from a long, low approach for efficient loading and unloading.Â
Built with the same rugged design philosophy found throughout Ledwell’s equipment hauling products, the FreedomTail combines steel construction, aluminum features, hardwood flooring, and dependable hydraulic performance in a right-sized package designed for daily use. The result is a truck that gives fleets more drivers, more flexibility, and more freedom.
SPECS
24′ bed length
10,000-pound bed capacity
15′ main deck
9′ hydraulic tail with 5′ fold under
FEATURES
Full-function wireless remote
Aluminum headache rack
Chain rack and pans
Ledwell manufactured hydraulics
SAFETY
Non-slip protective surface coating
Retractable deck access steps
Driver and passenger side grab handles
Work lights
DOT-approved lights and reflectors
OPTIONS
12,000 pound electric winch
20,000 pound hydraulic winch
Multi-view camera system
Scale system
Center tie downs
FAQS
FreedomTail Truck
How do I operate a FreedomTail Truck?
Correctly operating your Ledwell FreedomTail Truck is important to help extend the life of your equipment. Watch this operational series video or follow the steps below.
To get started, walk around the entire truck to inspect the following:
Overhead and ground obstructions, Winch & cable system, Hydraulic & Air Hoses, Lights, Wheels & Tires, and Remote control.
Make sure the truck is on level ground.
Set the parking brake and put the truck in neutral.
Engage PTO.
Dump the truck’s suspension.
Chock the wheels.
Use the Ledwell wireless remote to operate the hydraulic tail:
Push Tail Up to raise the tail.
Push Lock Off to unlock the tail & fold.
Push Fold Out to deploy the fold.
Push Tail Down to lower the tail until resting on the ground.
Safely load Equipment and remember to set the parking brake.
Secure equipment to the FreedomTail Bed with your preferred tie-downs.
Be sure each piece is tied down at four points to secure it properly.
To unload, reverse the process.
Do you have to have a CDL to operate a FreedomTail Truck?
No, if the GVWR is under 26,000 pounds, a CDL is not required.
